Mounting set for pitched roof 2 modules connected

overview

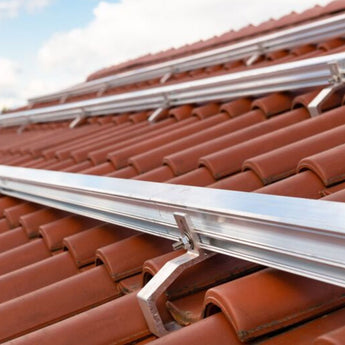

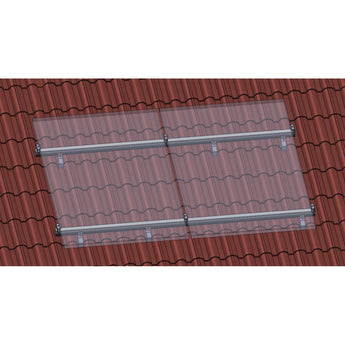

Our pitched roof mounting system is a high quality solution for installing solar panels on pitched roofs. Made of robust aluminum and stainless steel, it offers reliable and durable installation for your solar system. This system is flexible, easy to install and has been designed and tested to the highest standards. Perfectly suited Suitable for mounting 2 connected modules vertically next to each other or horizontally on top of each other. Suitable for a maximum rafter spacing of 80 cm when installed horizontally.

Characteristics

• Material: Aluminum and stainless steel for maximum strength and durability.
• Module clamps: 30-50mm, provides flexibility for different solar module sizes.
• Load capacity: Can withstand snow loads of up to 1.10 kN/m².
• Maximum building height: 12m
• Installation: Direct screw connection to the rafters for a secure and robust attachment.

Application

This pitched roof mounting system is ideal for installing solar panels on sloped roofs. It provides a stable and durable attachment that can withstand even extreme weather conditions. Thanks to the use of module clamps, it can also be used flexibly and can be adapted to different solar module sizes. Whether you want to install a small solar system for your home or a large system for a commercial building, this mounting system is the perfect choice. Please note that this mounting set can only be installed connected and is designed for 2 modules each.

scope of delivery

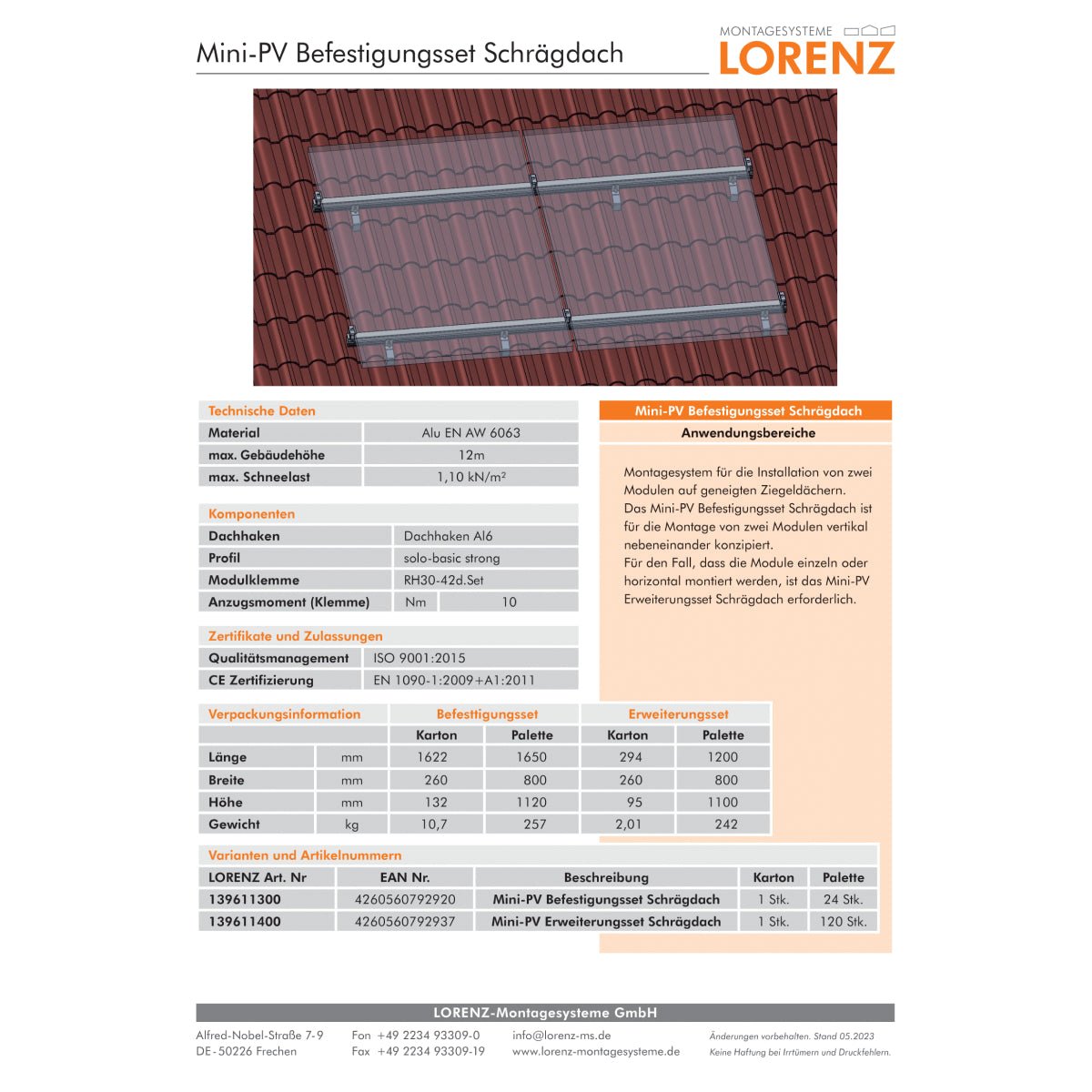

The pitched roof mounting system comes with all necessary mounting accessories including module clamps, screws & end caps. Please note that solar modules must be purchased separately. You can find assembly instructions and data sheets in our Download center he download.

quality and safety

When selecting our pitched roof mounting system, quality and safety come first. It has been tested according to the strictest standards and has CE certification ( EN 1090-1:2009+A1:2011). In addition, it meets the requirements of Eurocode 1, which proves its robustness and safety.
